Explore our premier engineered fenestration products precision-designed for weather-tight sealability, coastal wind-load resistance, and architectural integration.
Analyzing structural load deflection, thermal bridging mitigation, and continuous perimeter pressure sealing in high-performance aluminum awning systems.

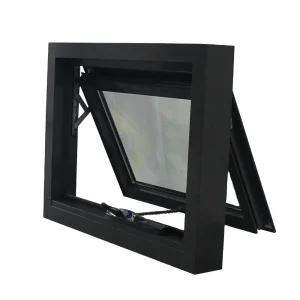

The modern chain winder awning window represents a landmark achievement in fenestration physics. Operating via a precision-engineered stainless steel or zinc-alloy scissor-chain mechanism, the winder allows controlled sash displacement outward from the frame base while maintaining structural stability against adverse wind pressures.
Unlike traditional friction-stay windows, chain winder actuators feature internal restriction gears that prevent unwanted sash movement caused by sudden turbulent gusts. The multi-stage internal clutch mechanism ensures uniform force distribution along the sash rail, eliminating frame twisting and maintaining perimeter gasket compression across thousands of operating cycles.

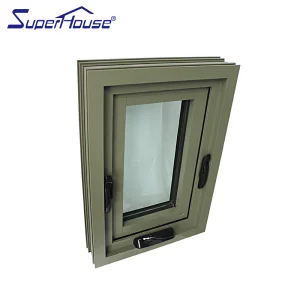

Our advanced aluminum extrusions utilize structural polyamide PA66GF25 thermal breaks reinforced with 25% glass fiber. This configuration interrupts metal-to-metal heat conduction, drastically lowering whole-window U-factors down to 1.4 W/m²K when combined with Argon-filled Low-E insulated glass units (IGUs).
Acoustically, the continuous top-hinged geometry combined with dual-density EPDM bulb gaskets yields sound attenuation up to STC 42 (Rw 41 dB). This makes chain winder awning systems ideal for urban residential developments, airport proximity housing, and multi-family high-density zoning requiring stringent noise mitigation.
Founded in 2014, ShieldCraft Door Industries Co., Ltd. combines 12 years of industry experience with 4 years of rapid international export growth.
Operating from a massive 50,000 sq ft industrial park, we generate over $45 million in annual export sales. Supported by strong international trade capabilities and over 1,800 supply chain partners, we supply leading Home Improvement Chains, Commercial Builders, and Brand Wholesalers across Eastern Europe, Central Asia, and North America. Quality is safeguarded by 95 QC technicians conducting automated optical inspections, impact endurance tests, and multi-point lock alignment checks. With top-tier R&D strength, our team of 210 skilled engineers developed over 600 new models last year, offering full customization options including smart entry system integration, custom RAL colors, and specialized thermal insulation cores.
Inside ShieldCraft’s automated production line: From raw 6063-T6 aluminum extrusion to precision CNC milling, coating, and assembly.
Storage
Cutting
Drilling
Assembling
Packaging
Angle Setting Machine
CNC Cutting Machine
CNC Drilling Machine
Cutting Machine
Machining Center
Multi head press
Painting Line
Aluminum alloy intelligent production line
Emerging technologies transforming chain winder awning systems into smart building envelopes.
Integration of concealed 24V DC brushless motorized chain winders supporting Matter, Zigbee, and KNX protocols. Enables automated rain-sensing closure and HVAC-synced natural ventilation routines.
Transitioning from standard double glazing to 8.3mm ultra-thin VIG units achieving U-factors below 0.60 W/m²K, reducing window sash weight while boosting thermal performance tenfold.
Incorporating silica aerogel infill into extrusions to eliminate internal convection cells within multi-cavity aluminum extrusions, yielding passive-house certified frames.
Custom engineering solutions structured for commercial, residential, and severe weather zones.
Heavy-duty 6063-T6 aluminum combined with SentryGlas® (SGP) laminated glass and 316 marine-grade stainless steel winder chains. Designed to withstand wind loads exceeding 4500 Pa (AS2047 Ultimate Limit State) and severe salt spray environments (tested up to 3,000 hours ASTM B117).
Equipped with integrated restrictors limiting maximum sash opening to 100mm for child safety compliance (NCC National Construction Code Australia). Incorporates multi-point locking cams driven by perimeter transmission rods for seamless weatherproofing at elevated storeys.
Designed with heavy-use key-lockable chain winders and high-impact clear acoustic laminates. Provides natural top-down ventilation during adverse rain conditions without risking water ingress into classrooms or administrative spaces.
Engineering specifications validated against international structural and thermal building codes.
| Standard / Certification | Target Region | Structural Wind Pressure | Water Penetration Threshold | Thermal / U-Factor Compliance |
|---|---|---|---|---|
| AS2047 / AS1288 | Australia / New Zealand | Up to 4500 Pa (N6 / C4) | 600 Pa - 1500 Pa | WERS Rated / U ≤ 1.8 W/m²K |

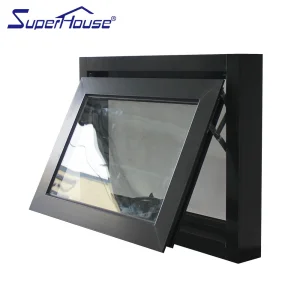

| Florida NOA / TAS 201-203 | USA (High-Velocity Hurricane Zone) | ±100 PSF Design Pressure | 15 PSF (ASTM E331) | NFRC 100/200 Approved |
| AAMA / WDMA / CSA 101 | North America General | CW-PG50 to AW-PG80 | 8.35 PSF - 12.0 PSF | Energy Star Tier 4 Compliant |
| CE / EN 14351-1 | European Union / UK | Class C5 (EN 12210) | Class E900 (EN 12208) | EnEV / Passivhaus Standards |
Facilitating seamless jobsite installation through region-specific framing adapters and pre-attached timber reveal liners.

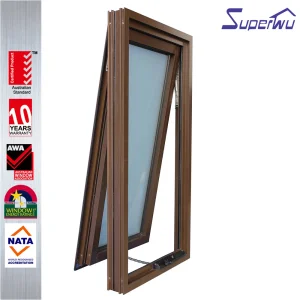

To accommodate Oceania and UK construction methodologies, ShieldCraft supplies pre-primed finger-jointed pine, Meranti, or Western Red Cedar timber reveals (100mm, 116mm, or 138mm depths) pre-factory fitted with continuous fin clips. This eliminates on-site labor overhead and guarantees thermal breaks between internal plasterboard linings and outer aluminum extrusions.
For commercial projects requiring sub-framing, our extruded sub-sills incorporate internal drainage channels with non-return flap valves. This prevents positive wind pressure from driving rainwater back through weep holes during severe storms, achieving water resistance integrity up to 1200 Pa.
