High-performance aluminum awning series optimized for severe weather, thermal isolation, and modern architectural aesthetics.
Analyzing structural efficiency, thermal dynamics, and global architectural trends driving the adoption of European-style aluminum awning fenestration.
Euro Awning Windows are top-hinged fenestration systems that swing outward from the bottom. This mechanical configuration establishes a natural protective canopy, enabling continuous micro-ventilation even during intense tropical precipitation. Unlike horizontal sliding systems that allow water pooling inside track channels, top-hung awning designs leverage gravity to shed water outward seamlessly.
Modern commercial architecture demands building envelopes that minimize operational carbon footprints while meeting strict life-safety standards. Euro awning windows are engineered to integrate smoothly into structural curtain wall systems, punched openings, and ribbon window assemblies, providing precise ventilation control and certified structural integrity.
Deconstructing the structural alloy composition, thermal break physics, and glazing configurations engineered by ShieldCraft Door Industries Co., Ltd.
The structural backbone of our Euro Awning series relies on primary-grade 6063-T6 aluminum alloy extrusions. Standard architectural profiles often utilize recycled alloys with variable tensile strength. In contrast, 6063-T6 delivers exceptional structural yield strength (≥ 170 MPa) and ultimate tensile strength (≥ 205 MPa), guaranteeing dimensional stability under high wind pressures.
Profiles feature multi-chambered internal geometries designed to reinforce corner joints, house heavy-duty hardware friction stays, and accommodate high-performance multi-point locking rods without flexing.
Aluminum is naturally conductive. To eliminate thermal bridging, ShieldCraft incorporates structural polyamide thermal break strips reinforced with 25% glass fiber (PA66 GF25). These strips mechanically lock the outer and inner aluminum profiles together while creating a massive thermal barrier.
This thermal break layer significantly reduces conductive heat transfer, preventing condensation formation on interior surfaces during freezing winters or hot, humid summers.
| Performance Parameter | Test Standard / Protocol | ShieldCraft Standard Profile | ShieldCraft Heavy-Duty Impact Series |
|---|---|---|---|
| Thermal Transmittance (U-Factor) | NFRC 100 / EN ISO 10077-2 | 0.28 - 0.32 Btu/h·ft²·°F | 0.18 - 0.24 Btu/h·ft²·°F (Triple Insulated) |
| Solar Heat Gain Coefficient (SHGC) | NFRC 200 / ANSI/ASHRAE 90.1 | 0.22 - 0.40 (Customizable) | 0.15 - 0.25 (Low-E Solar Control) |
| Structural Load (Wind Pressure) | ASTM E330 / AS2047 / EN 12210 | 3500 Pa (Class C5) | 6000 Pa (Miami-Dade Approved ±90 PSF) |
| Water Penetration Resistance | ASTM E547 / ASTM E331 / EN 12208 | 600 Pa (12.5 PSF) | 1050 Pa (High-Velocity Hurricane Rating) |
| Acoustic Sound Insulation (STC/OITC) | ASTM E90 / ISO 140-3 | STC 38 / OITC 32 | STC 45 / OITC 38 (PVB Laminated IGU) |
| Air Infiltration Leakage | ASTM E283 / BS EN 12207 | < 0.05 cfm/ft² at 1.57 psf | < 0.01 cfm/ft² (Air-Tight Compression Seal) |
Engineered to exceed strict building codes across North America, Europe, Australia, and coastal high-humidity zones.
To supply major commercial contractors and home improvement distributors in North America, fenestration products must satisfy rigorous energy and structural standards:
International enterprise buyers demand strict adherence to region-specific performance testing and environmental directives:
Founded in 2014, ShieldCraft Door Industries Co., Ltd. operates a massive 50,000 sq ft industrial facility generating over $45 million in annual export revenue. Backed by 210 skilled R&D engineers and 95 dedicated QC technicians conducting automated optical inspections and multi-point lock alignment checks, we ensure total manufacturing control across all 13 production stages.
How ShieldCraft is pioneering smart building connectivity, ultra-narrow sightlines, and building-integrated solar energy harvesting.
The future of commercial fenestration lies in automated responsiveness. ShieldCraft Euro Awning Windows can be customized with integrated 24V DC hidden electric actuators. Connected to automated Building Management Systems (BMS), these windows respond dynamically to environmental sensor inputs:
Architectural design demands maximal daylighting paired with renewable power generation. Our R&D division is advancing two key frontiers:

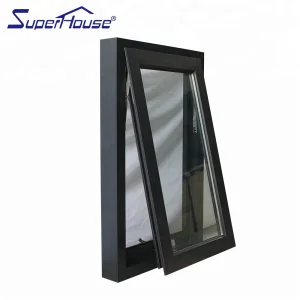

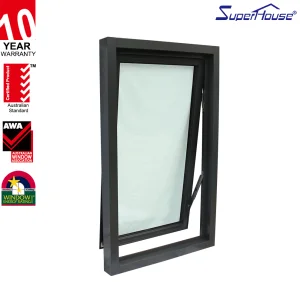

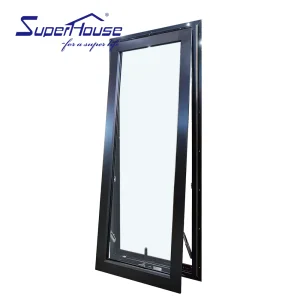

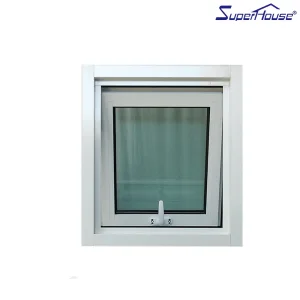

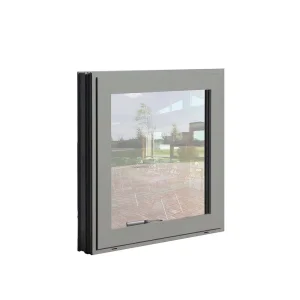

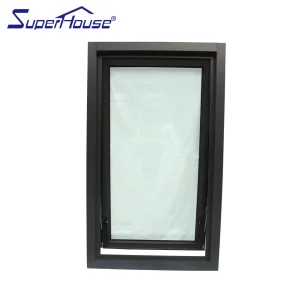

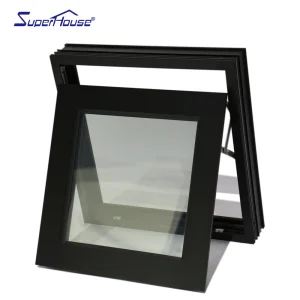

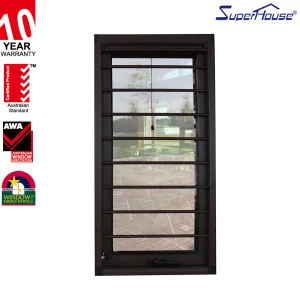

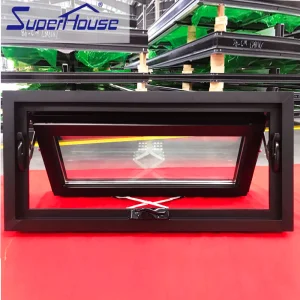

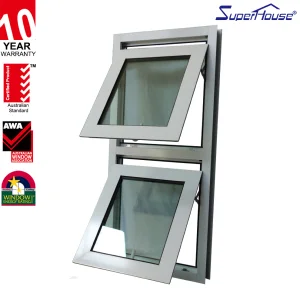

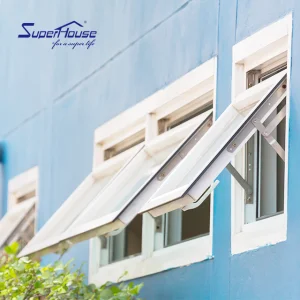

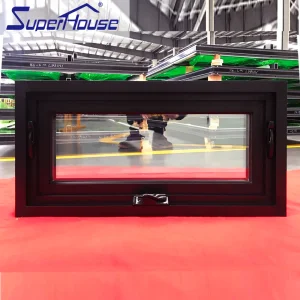

Explore our full line of Australian standard, thermal break, and crank-operated awning configurations.
Streamlined OEM/ODM customization protocols and export logistics protection for global distributors and builders.
With over 1,800 international supply chain partners, ShieldCraft provides fully tailored architectural manufacturing. In the last year alone, our engineering team introduced over 600 custom profile models.
Global sea-freight transit requires protective packaging to prevent profile abrasion and glass seal degradation during oceanic transport.
Detailed answers to enterprise inquiries regarding structural engineering, minimum order quantities, and international certification compliance.
Our Euro Awning Windows are independently tested and certified under NFRC (National Fenestration Rating Council) standards for U-Factor, SHGC, and VT, fulfilling Energy Star 7.0 requirements. For high-velocity hurricane zones (HVHZ), our impact series holds Miami-Dade NOA and Florida Building Code (FBC) approvals. For Australian developments, our systems are certified under AS2047 (Windows and External Glazed Doors) and AS1288 (Glass in Buildings).
Awning windows deliver far higher energy efficiency and airtightness than horizontal sliders. Because awning windows utilize compression weather-stripping seals around the entire perimeter, external wind forces press the sash tighter against the frame, lowering air infiltration rates to <0.01 cfm/ft². Sliding windows rely on brush seals that wear over time and permit higher air leakage rates under severe wind pressure.
We provide three main actuation methods: 1) German manual push-out friction stays with multi-point perimeter locking handles, 2) Rotary dual-arm hand cranks for precise manual control in residential applications, and 3) 24V DC electric chain actuators that integrate into smart home setups or central Building Management Systems (BMS) for automated high-reach commercial operation.
For maximum sound attenuation (STC 40-45+), we recommend a double-glazed acoustic laminate assembly featuring an asymmetrical glass matrix (e.g., 6mm outer toughened glass + 12mm Argon gas space + 8.76mm inner PVB acoustic laminated glass). The varying glass thicknesses disrupt different sound frequencies, while the PVB interlayer dampens vibrational sound transmission.
ShieldCraft operates across a 50,000 sq ft industrial park with 13 intelligent automated production lines. Our average lead time for custom engineered commercial orders is 25 to 35 days from shop drawing approval. We accommodate project-based orders starting from an MOQ of 50 square meters up to full container load (FCL) shipments for major commercial developments.
