Engineered for extreme structural integrity, solar thermal control, and acoustic damping. Fully certified for global building codes.
An architectural breakdown of why dual-action tilt and turn fenestration systems are dominating low-carbon urban development globally.

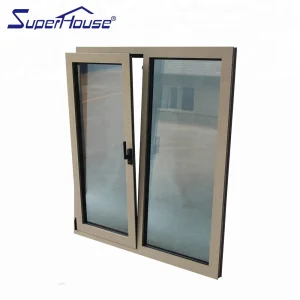

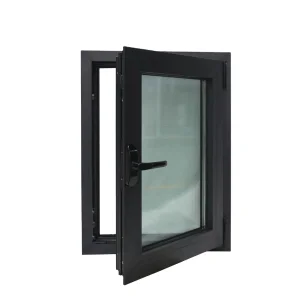

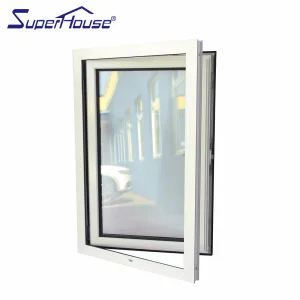

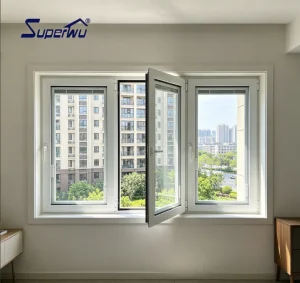

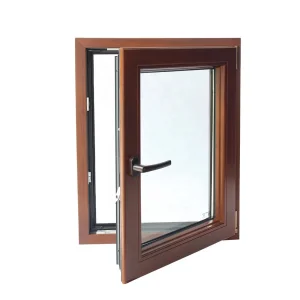

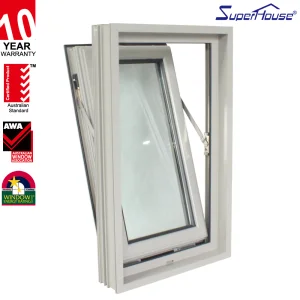

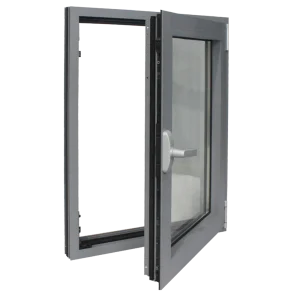

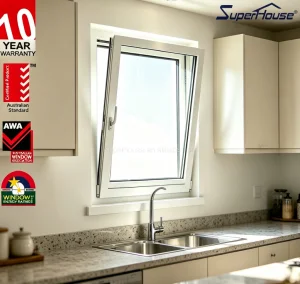

Tilt & Turn systems represent a masterpiece of mechanical engineering. In the Turn position (side-hinged inward opening), the sash allows 100% full egress, maximizing air exchange and enabling effortless interior cleaning of exterior glass. In the Tilt position (top-tilting inward at 10–15 degrees), the system provides continuous rainproof draft-free ventilation while maintaining absolute perimeter security against forced entry.
To combat raw aluminum’s thermal conductivity, modern architectural aluminum window systems incorporate structural PA66 GF25 (25% Glass-Fiber Reinforced Polyamide) thermal barrier strips. By physically isolating the interior and exterior aluminum profiles, thermal conduction pathways are eliminated, reducing energy transference and eliminating condensation risks in high-humidity zones.
Unlike conventional sliding or single-hung windows, Tilt & Turn sashes engage circumferential multi-point locking gear around the entire perimeter frame. When locked, triple EPDM gaskets compress uniformly across the frame rebate, establishing extreme resistance against air infiltration, driving rain penetration, and dynamic wind loading during severe tropical storm events.
While legacy PVC systems suffer from thermal degradation, solar warping, and limited structural load capacity for high-rise spans, extruded 6063-T6 aluminum alloys coupled with advanced polyamide thermal break profiles offer high strength-to-weight ratios. This enables architects to design ultra-large vision glass panels with structural sash load capacities up to 300kg per sash, supporting triple or quadruple insulated glass units (IGUs) effortlessly.
Rigorous laboratory verification under ASTM, NFRC, AAMA, and European Norm (EN) test criteria.
| Performance Metric | Standard Specification | High-Efficiency Upgrade Option | Test Standard Compliance |
|---|---|---|---|
| Thermal Transmittance (U-Factor) | 1.4 – 1.8 W/m²·K (0.25 - 0.31 Btu/h·ft²·°F) | ≤ 0.8 W/m²·K (Passive House Certified) | NFRC 100 / EN ISO 10077-2 |
| Solar Heat Gain Coefficient (SHGC) | 0.22 – 0.35 | 0.15 Low-E Spectrally Selective | NFRC 200 / ISO 9050 |
| Acoustic Attenuation (STC / OITC) | STC 35 dB / OITC 29 dB | STC 48 dB (Laminated Acoustic Glass) | ASTM E90 / ASTM E1425 |
| Wind Pressure Resistance | DP 50 (2400 Pa Structural Load) | DP 100 / NOA HVHZ (4800 Pa Impact) | ASTM E330 / TAS 202 |
| Water Penetration Resistance | 450 Pa (Static Water Head) | 750 Pa (Isobaric Rainscreen Cavity) | ASTM E547 / AAMA 501 |
| Air Infiltration Rate | < 0.10 cfm/ft² @ 1.57 psf | < 0.02 cfm/ft² (Hermetic Compression Gasket) | ASTM E283 |
Tailored technical configurations engineered to pass stringent local building codes across major export markets.

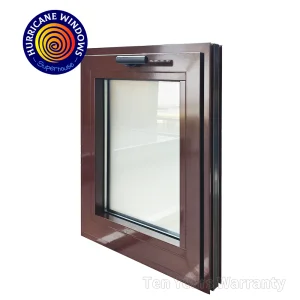

For Coastal Florida and Texas regions, windows feature Miami-Dade NOA hurricane impact certifications utilizing SentryGlas® (SG) interlayers and reinforced heavy-wall profile extrusions capable of resisting Large Missile Impact (TAS 201/203). For California, low SHGC Low-E coatings fulfill stringent California Title 24 Energy Code requirements.

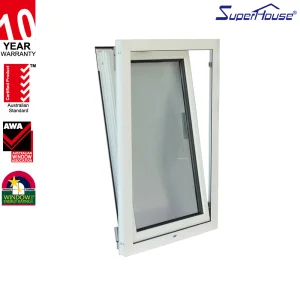

Designs exported to New Zealand and Australia are engineered to meet NZS 4211 and AS2047 benchmarks. Facing intense marine salt air and elevated solar ultraviolet levels, profile surfaces are treated with high-durability AAMA 2605 Fluoropolymer Powder Coatings (D2015/D3000 options) guaranteeing 20+ years of color retention and anti-corrosion protection.
In regions experiencing sub-zero winters like Central Asia and Eastern/Northern Europe, our systems integrate multi-chamber thermal breaks and triple-pane warm-edge spacer glass IGUs. This achieves near-zero thermal bridging (Uw ≤ 0.8 W/m²K), matching German Passive House Institute (PHI) energy conservation mandates.
Founded in 2014, ShieldCraft Door Industries Co., Ltd. combines 12 years of deep architectural fenestration expertise with rapid international export growth across 40+ countries.
Operating from a massive 50,000 sq ft state-of-the-art industrial park, ShieldCraft generates over $45 million in annual export sales. Supported by robust international trade infrastructure and an expansive network of over 1,800 supply chain partners, we supply leading Home Improvement Chains, Commercial General Contractors, and Brand Wholesalers across Eastern Europe, Central Asia, and North America. Quality control is rigidly maintained by 95 full-time QC technicians utilizing automated optical inspections, impact cycle endurance testing rigs, and multi-point lock alignment checks. Driven by industry-leading R&D capabilities, our team of 210 skilled structural engineers developed over 600 custom profile models last year alone—delivering complete OEM/ODM solutions including smart motor integration, custom RAL powder finishes, and high-density polyurethane thermal core insulation.
Raw Material Storage
Precision Profile Cutting
Automated CNC Drilling
Precision Frame Assembly
Export Protective Packaging
Angle Setting Machine
CNC Cutting Machine
CNC Drilling Machine
Dual-Head Cutting Machine
Heavy Machining Center
Multi-Head Punch Press
Vertical Coating & Painting Line
Aluminum Alloy Intelligent Production Line
Pioneering smart building integration, circular low-carbon metallurgy, and micro-climate control automation.
Integrating transparent photovoltaic glass coatings into tilt-turn IGUs to turn facade glass into decentralized solar micro-generators while retaining 70%+ visible light transmittance (VLT).
Concealed electric motorized chain actuators paired with IoT air-quality sensors automatically trigger micro-tilt ventilation based on interior CO2 levels, disengaging HVAC compressors to optimize energy efficiency.
Utilizing high-tensile 75% recycled aluminum billets combined with ultra-slim structural glass bonding, achieving invisible frame profiles without sacrificing hurricane wind-load performance.
Direct technical answers for architectural specifiers, real estate developers, and commercial buyers.
Explore our specialized soundproof, thermal break, and commercial high-rise fenestration options.
