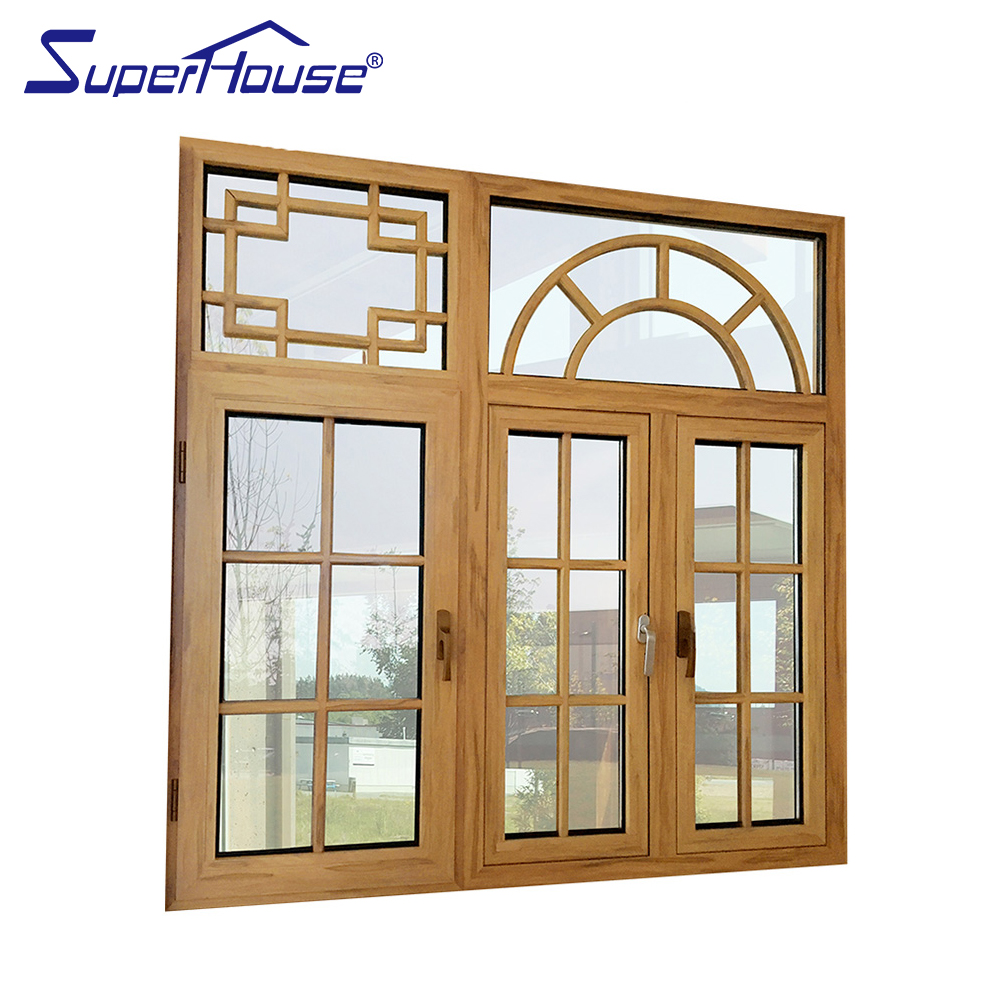

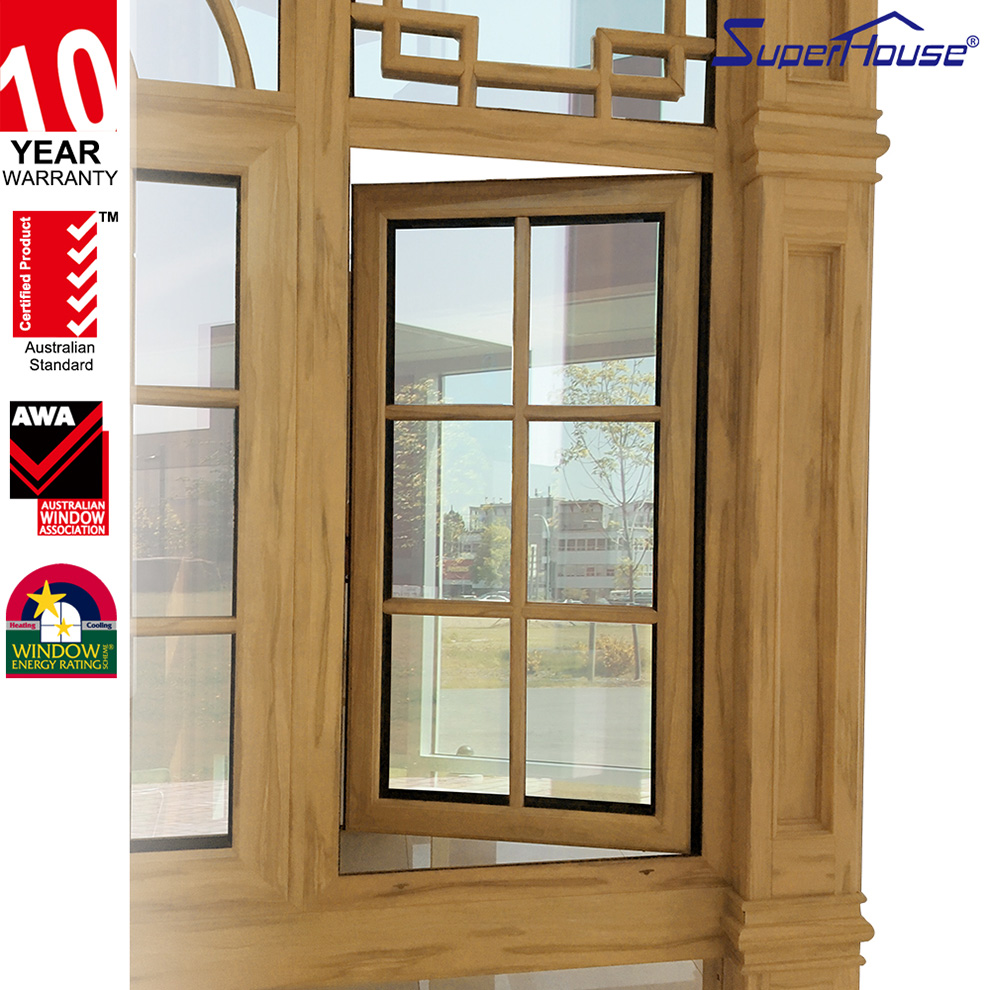

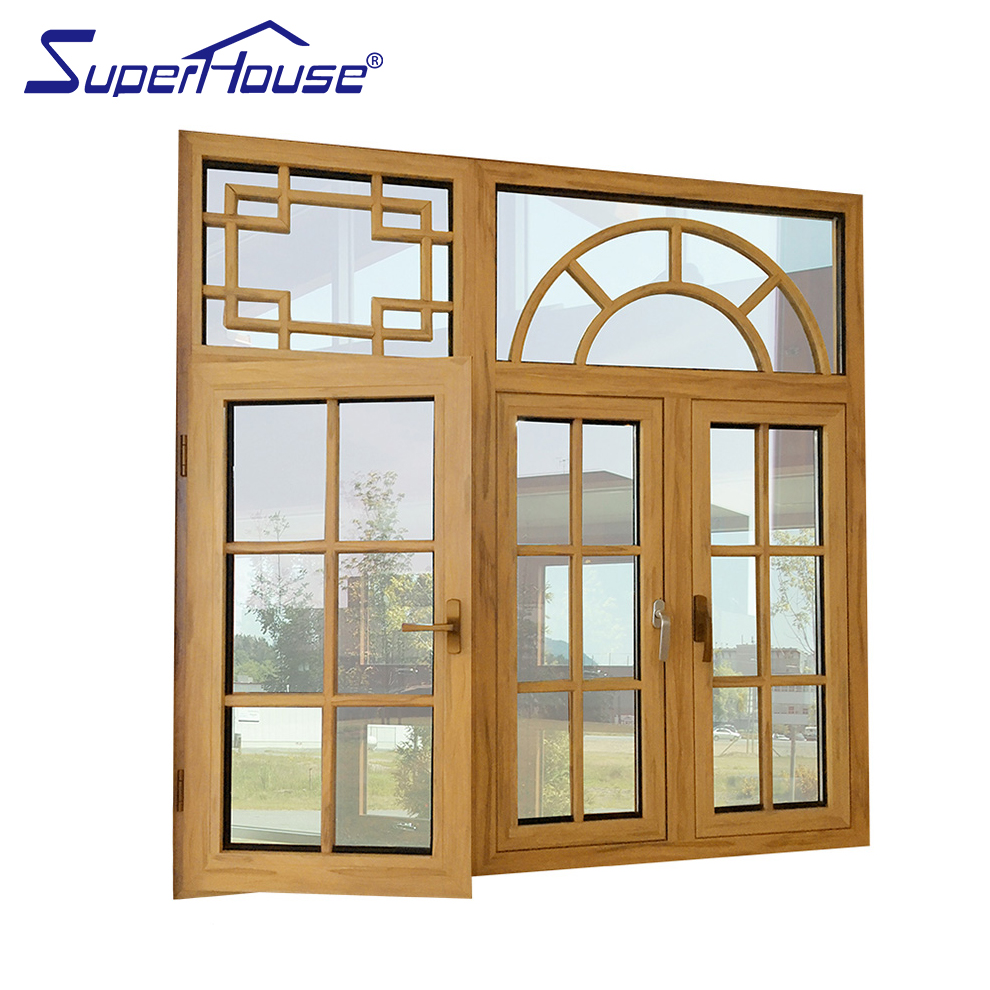

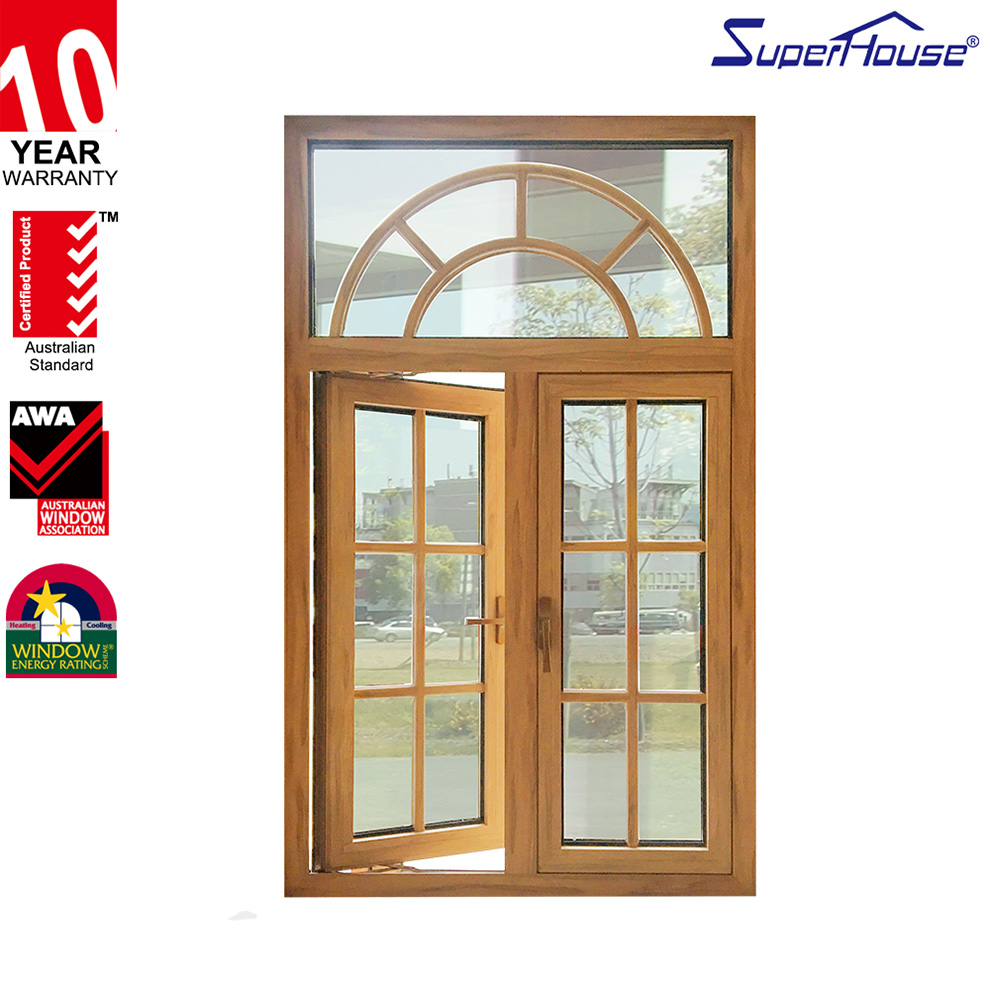

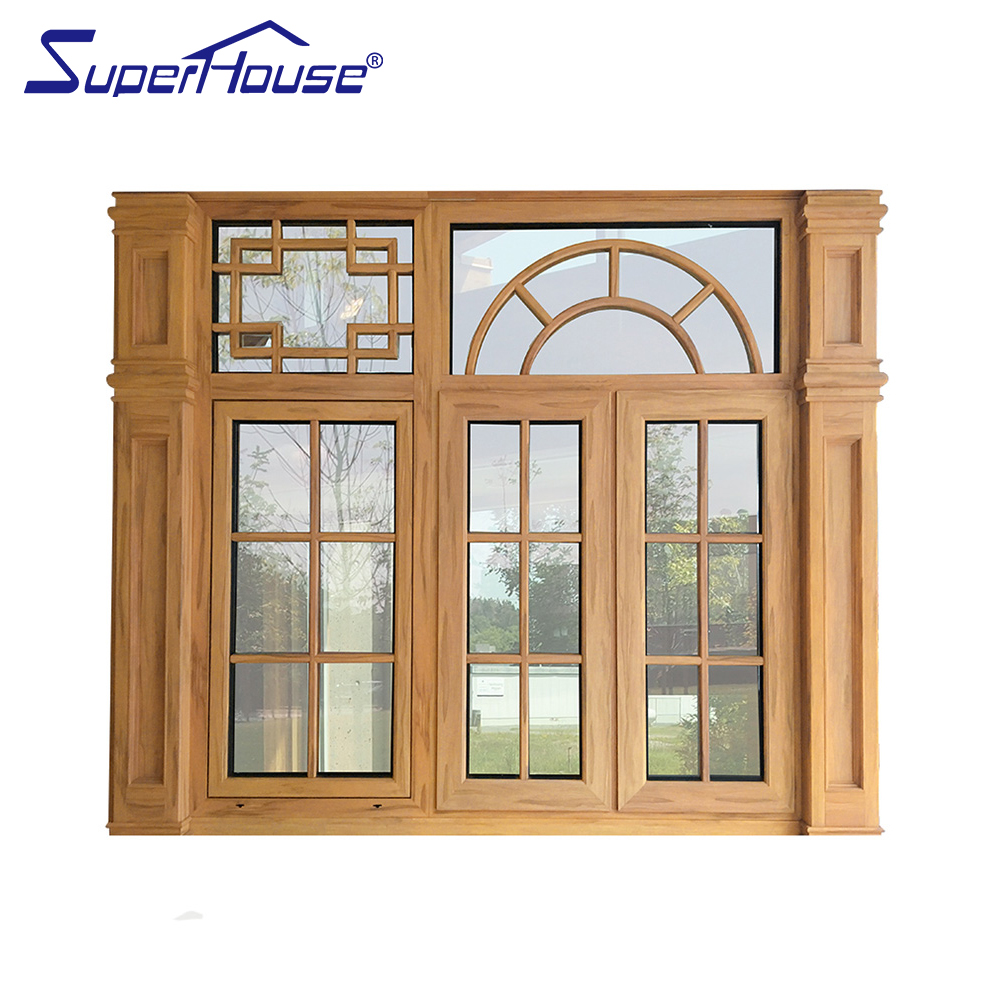

High Energy Efficiency NFRC Narrow Frame Aluminium Casement Window
Product Description & Visuals
Each column features many different options, allowing custom combinations to design personalized, high energy efficiency narrow frame windows and doors backed by 50 years of industry experience.
Technical Specifications
Profiles
6063-T5 high quality thermal break aluminium profile, thickness 1.4-1.6 mm
6063-T5 high quality non-thermal break aluminium profiles, thickness 1.4-1.6 mm
Single toughened glazing: 3/4/5/6/8/10/12/15/19/21/6.38/11.76mm
Laminated glazing: 5mm+0.76+5mm, 5mm+0.38+5mm
Hardware
German brand: Roto, Siegenia, Geze
Australian brand: Doric
Chinese brand: Kinlong, Zhenjiang
Mesh
Stainless steel security mesh
Aluminium security mesh
Fiberglass flyscreen
Retractable flyscreen
Finish
Powder coating
Anodized
Electrophoresis
Wood grain
Fluorine carbon coating
Product Details & Gallery
Professional suggestions on profile and glazing adoption are provided for first-time window or door purchases. Different regions possess unique climatic characteristics, requiring specialized profile and glazing treatments to ensure window longevity, optimal energy absorption, and thermal saving performance. Products come with a 10-year quality guarantee.
Frequently Asked Questions (FAQ)
1. What is spectrally selective glazing?
A coated or tinted glazing with optical properties that is transparent to some wavelengths of energy and reflective to others. Typical spectrally selective coatings are transparent to visible light and reflect short-wave and long-wave infrared radiation.
2. What is insulated glass?
This term applies to two or more panes of glass separated by insulation at the edges and air in the centre to provide greater thermal efficiency to a window.
3. What is gas filled glass?
An inert gas, usually argon, is sealed between the panes of glass in a window instead of air. Gas is a better insulator than air, increasing the thermal value of the window.
4. What is AS2047 standard compliance?
It is the mandatory minimum specification for windows and doors used in Australia, including compliance to the Glass Standard AS 1288.
5. What performance tests are conducted under AS2047?
The following standard performance tests are undertaken to verify window and door performance claims:
AS 4420.2 Deflection Test: Positive and negative wind pressures are applied to test maximum deflection under wind load.
AS 4420.3 Operating Force Test: Verifies that an opening sash can open and close without undue effort.
AS 4420.4 Air Infiltration Test: Tests window air leakage to ensure optimal energy and acoustic efficiency.
AS 4420.5 Water Penetration Resistance Test: Designed to prevent water leakage through the window into the building.
AS 4420.6 Ultimate Strength Test: Applies wind pressures up to at least 1.5 times the design wind pressure to prevent failure during severe weather.
6. How do I get more information about NFRC narrow frame aluminium casement windows?
For complete technical options, customized framing, profile choices, and energy rating recommendations, please feel free to reach out to us.
